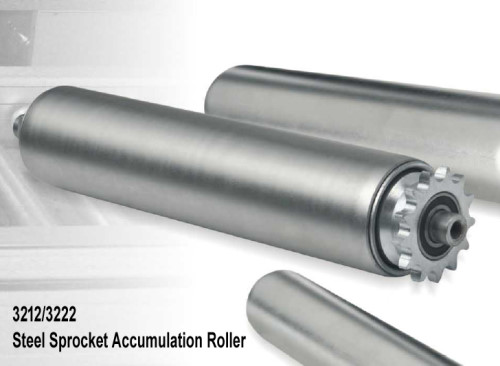

3212/3222 Sprocket Accumulation Roller

Conveyor Type:	Single or double driven sprocket roller conveyor
Applications:	Indoor Application Package goods, plastic tote containers, cardboard cartons etc.
Tube Type:	Mild steel coated tube: 50, 60mm dia Stainless steel tube: 50, 60mm dia. Aluminum tube: 50, 60mm dia.
Shaft:	Female threaded type: 12mm dia.
Bearing:	Plastic bearing housing Nylon 66. Beaing end cap seal: PP. Precision bearing 6002 double face sealed
Sprocket:	Plastic sprocket type: No. of teeth = 14 (08B Chain)

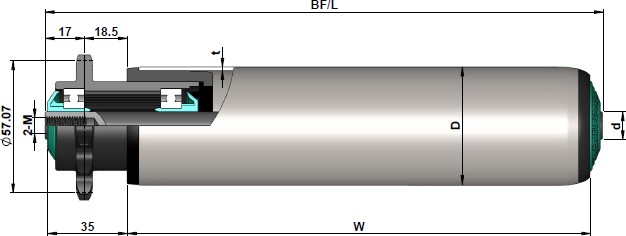

Single Sprocket (3212)

Tube diameter(D)	Shaft diameter(d)		Sprocket Model	d0
50	12	E=W+41	08B14T	57.07
60	12	E=W+41	08B14T	57.07

Tube	Tube Diameter & Thickness (D*t)	Shaft Diameter (d)
		12(M8x15)	15(M10x20)
Steel, zinc plated	50.6*1.5	3.212.JHA.ACC	3.212.JHA.ADC
	60*2	3.212.JOA.ACC	3.212.JOA.ADC
Stainless steel	50.6*1.5	3.212.NHC.BCC	3.212.NHC.BDC
	60*2	3.212.NOC.BCC	3.212.NOC.BDC
Aluminum alloy	50.6*1.5	3.212.AHC.ACC	3.212.AHC.ADC
	60*2	3.212.AOC.ACC	3.212.AOC.ADC

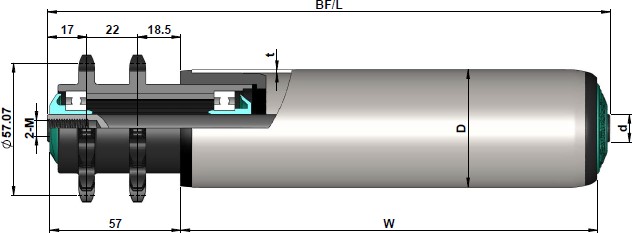

Double Sprocket (3222)

Tube diameter(D)	Shaft diameter(d)		Sprocket Model	d0
50	12	E=W+63	08B14T	57.07
60	12	E=W+63	08B14T	57.07

Tube	Tube Diameter & Thickness (D*t)	Shaft Diameter (d)
		12(M8x15)	15(M10x20)
Steel, Zinc Plated	50.6*1.5	3.222.JHA.ACC	3.222.JHA.ADC
	60*2	3.222.JOA.ACC	3.222.JOA.ADC
Stainless steel	50.6*1.5	3.222.NHC.BCC	3.222.NHC.BDC
	60*2	3.222.NOC.BCC	3.222.NOC.BDC
Aluminum alloy	50.6*1.5	3.222.AHC.ACC	3.222.AHC.ADC
	60*2	3.222.AOC.ACC	3.222.AOC.ADC
