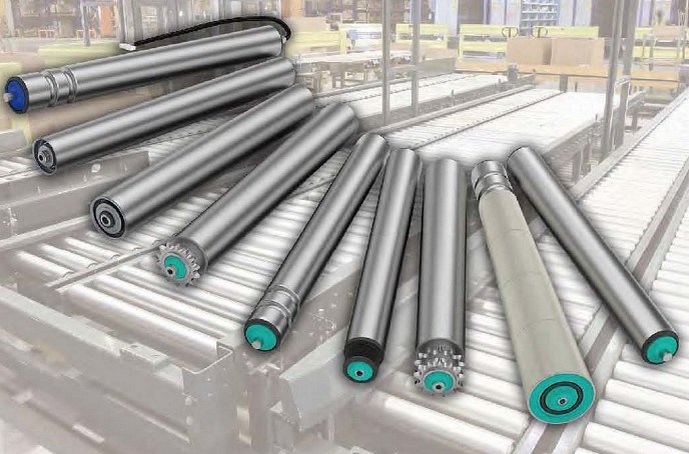

3816/3826 Adjustable Accumulation Roller

Conveyor Type:	Single or double driven sprocket roller conveyor
Applications:	Indoor Application Package goods, plastic tote containers, cardboard cartons etc.
Tube Type:	Mild steel coated tube: 50, 60, 76, 89mm dia Stainless steel tube: 50, 60, 76mm dia.
Shaft:	Female threaded type: 12, 15, 20mm dia.
Bearing:	Steel bearing housing Precision bearing 6002, 6204 double face sealed
Sprocket:	Plastic sprocket type: No. of teeth = 14 (08B Chain) No. of teeth = 13 (10A Chain)

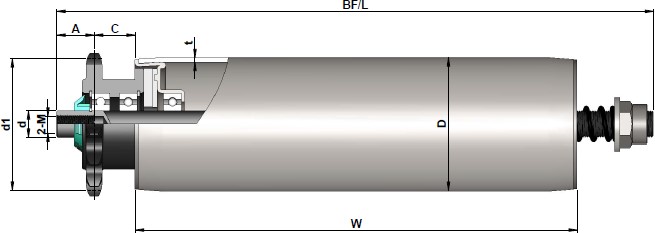

Single Sprocket (3816)

Tube diameter(D)	Shaft diameter(d)		Sprocket Model	d0
50	12	E=W+70	08B11T	45.08
60	12/15	E=W+70	08B14T	57.07
76	20	E=W+81	10B13T	66.33
60	20	E=W+81	10B13T	66.33

Tube	Tube Diameter & Thickness (D*t)	Shaft Diameter (d)
Steel, Zinc Plated		12(M8x15)	15(M8x15)	20(M12x25)
	50.6*1.5	3.816.JHA.ACC
	60*2	3.816.JOA.ACC	3.816.JOA.ADC
	76*3			3.816.JSA.AEC
	89*3
	89*4
Stainless steel	50.6*1.5	3.816.NHC.BCC
	60*2	3.816.NOC.BCC	3.816.NOC.BDC
	76*3
Aluminum alloy	50.6*1.5	3.816.AHC.ACC
	60*2	3.816.AOC.ACC	3.816.AOC.ADC
	76*3			3.816.ASC.AEC

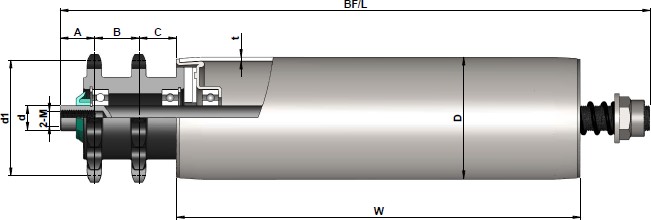

Double Sprocket (3826)

Tube diameter(D)	Shaft diameter(d)		Sprocket Model	d0
50	12	E=W+92	08B11T	45.08
60	12/15	E=W+92	08B14T	57.07
76	20	E=W+103	10B13T	66.33
60	20	E=W+103	10B13T	66.33

Tube	Tube Diameter & Thickness (D*t)	Shaft Diameter (d)
Steel, zinc plated		12(M8x15)	15(M8x15)	20(M12x25)
	50.6*1.5	3.826.JHA.ACC
	60*2	3.826.JOA.ACC	3.826.JOA.ADC
	76*3			3.826.JSA.AEC
	89*3
	89*4
Stainless steel	50.6*1.5	3.826.NHC.BCC
	60*2	3.826.NOC.BCC	3.826.NOC.BDC
	76*3
Aluminum alloy	50.6*1.5	3.826.AHC.ACC
	60*2	3.826.AOC.ACC	3.826.AOC.ADC
	76*3			3.826.ASC.AEC
