Belt Conveyor
Belt Conveyor solutions for typical applications.
- Carton transportation
- Adaptable for odd shape products
- Adaptable for different product weights and sizes
- Suitable for low and high speed conveying
- Industry applications: warehousing, postal, pharmaceutical, production lines, packaging food and beverage etc.
Damon Belt Conveyors are:
- Simple modular construction
- Durable structure
- Low maintenance
- Available with belt over deck and belt over roller
Conveyor Combination
- Straight horizontal
- Straight incline/decline
- Incline with power feed/top curve
- Decline with power feed/top curve
Technical Data:
| Temp Range | -25°C~+40°C | |
| Humidity | 80% (Max) | |
| Width (BB) Back to Back profile | 317，417，517，617，717，817，917 (mm) | |
| Intermediate Section Length | 300-2850（mm），Increments of 150 (mm) | |
| Speed | 10 – 120 m/min | |
| Load Capacity | 50 kg/m | |
| Voltage | 415V/3ph/50Hz | |
| Drive Mounting |
Type:
Direct shaft mounted Via chain and sprocket |
|
| Drive Mounting Position | Left hand / Right hand | |
| Belt Type |
Smooth top
Rough top |
|
| Belt Join Connection |
Hot vulcanised
Fastener Join |
|
| Frame Construction | Mild Steel |

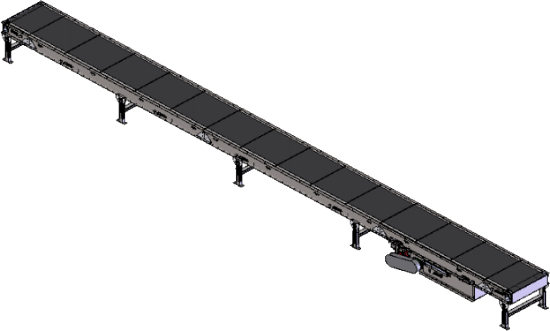

HORIZONTAL
INCLINE WITH END DRIVE
INCLINE WITH MID MOUNT DRIVE
METERING BELT CONVEYOR
