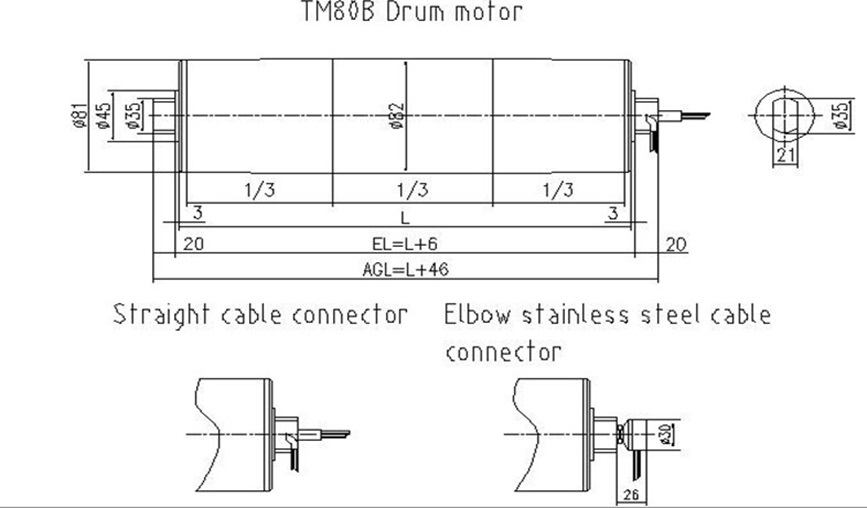

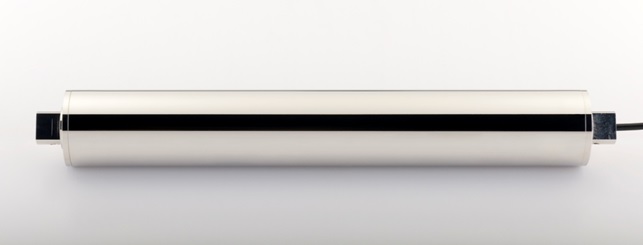

TM80B

Main used in:	X-ray machines (airport and railway station), Package machines, Food processing & Belt conveyors
Power:	*TM80B-1 230V / 50Hz 0.034kw, 0.06kw, 0.075kw, 0.09kw, 0.12kw TM80B-3 * 400V / 50Hz** 0.034kw, 0.05kw, 0.075kw, 0.09kw, 0.12kw
Nominal belt speed:	*TM80B-1 230V / 50Hz 0.06m/s, 0.08m/s, 0.10m/s, 0.12m/s, 0.15m/s, 0.21m/s, 0.23m/s, 0.3m/s, 0.36m/s, 0.4m/s, 0.44m/s, 0.54m/s, 0.60m/s, 0.72m/s, 0.8m/s, 0.87m/s TM80B-3 * 400V / 50Hz** 0.05m/s, 0.08m/s, 0.10m/s, 0.12m/s, 0.15m/s, 0.19m/s, 0.23m/s, 0.3m/s, 0.36m/s, 0.44m/s, 0.54m/s, 0.6m/s, 0.72m/s, 0.87m/s
Shell:	Material: Mild steel and stainless steel (ss304) Shape: Crowned & Cylindrical
Gear box:	High hardened light and resistant gear to a high quality finish ensuring low noise level and longevity.
Motor:	Common global voltages at 50Hz or 60Hz. Motor windings insulation class F / All motors with thermal protection. Oil cooled electrical motor / Cable length minimum 1.2 meters outside.
Shaft:	End housing (front & rear) Die cast aluminium Aluminium plated nickel Stainless steel (std. 304)
Shaft (front & rear):	Mild steel Stainless steel (std. 304)
Electrical connection:	Straight cable connector Elbow stainless steel cable connector Oil resistant PVC cable LS halogen-free cable
