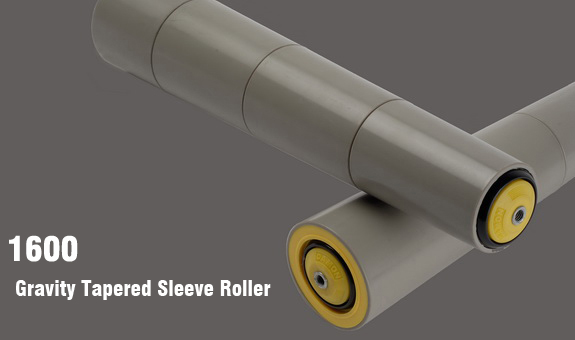

1600 Gravity Tapered Sleeve Roller
| Conveyor Type: | Gravity curved conveyor |
| Applications: |
Indoor Transportation
Gravity Package Goods Rims, Tyres, Wheels |
| Tube Type: |
Welded steel inner tube 50mm dia
Plastic tapered outer sleeve |
| Shaft: |
Spring loaded type: 11mm Hex, 12mm dia.
Female threaded type: 12mm dia. |
| Bearing: |
Plastic bearing housing Nylon 66.
Bearing end cap seal: PP. Precision bearing 6002 double face sealed. |

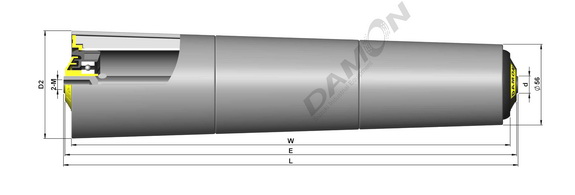

Female Thread
| Tube diameter(D) | Axis diameter(d) | ||
| 56 | 12/15 | E=W+9 | L=W+11 |
| Tube | Roller Length (W) | Shaft Diameter (d) | |
| Steel, Zinc Plated | 12(M8x15) | 15(M10x20) | |
| 230~305 | 1.600.JH3.ACC | 1.600.JH3.ADC | |
| 330~405 | 1.600.JH4.ACC | 1.600.JH4.ADC | |
| 430~505 | 1.600.JH5.ACC | 1.600.JH5.ADC | |
| 530~605 | 1.600.JH6.ACC | 1.600.JH6.ADC | |
| 630~705 | 1.600.JH7.ACC | 1.600.JH7.ADC | |
| 730~805 | 1.600.JH8.ACC | 1.600.JH8.ADC |
