TM216

Main used in:	Slaughter conveyors /Meat, poultry and fish processing, Food processing / Packaging and weighing equipment, Postal sorter / Warehousing and vehicle loading, Agricultural handing conveyors/Bulk handing conveyors, Brick and timer making conveyors, Steep incline conveyors
Power:	TM216 *-3 400V / 50Hz** 0.37kw , 0.55kw , 0.75kw , 1 .10kw , 1 .5kw , 2.2 kw , 3.0 kw , 4.0 kw
Nominal belt speed:	TM216 -3 * 400V / 50Hz 0.10 m/s , 0.13 m/s , 0.16 m/s , 0.17 m/s , 0.20 m/s , 0.25 m/s, 0.30 m/s, 0.40m/s , 0.50m/s , 0.63m/s , 0.80m/s , 1.0m/s , 1.26m/s , 1.6m/s , 2.0m/s
Shell:	Material: Mild steel and stainless steel (ss304) Shape: Crowned & Cylindrical
Gear box:	Gears machines and honed from alloyed casehardened steel to a high quality finish ensuring low noise level and longevity.
Motor:	Common global voltages at 50Hz or 60Hz. Motor windings insulation class F / All motors with thermal protection. Oil cooled electrical motor / Cable length minimum 1.2 meters outside shaft.
Shaft:	End housing (front & rear) Die cast aluminium Aluminium plated nickel Stainless steel (std. 304)
Shaft ( front & rear ):	Mild steel Stainless steel (std. 304)

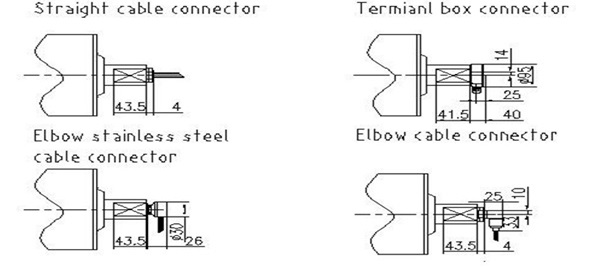

Electrical connection:	Straight cable connector Elbow stainless steel cable connector Oil resistant PVC cable LS halogen-free cable
