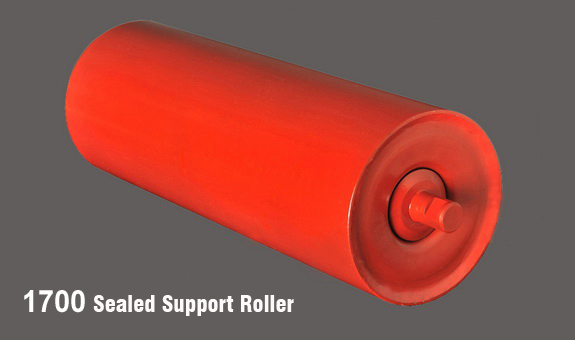

1700 Roller For Bulk Handling
| Conveyor Type: | Bulk Mining conveyor, Gravity conveyor |
| Applications: | Colliery, ore, etc. |
| Tube Type: |
Mild Steel tube: 60, 76, 89, 101.6, 108mm dia.
Stainless steel tube: 38, 60mm dia. Aluminium tube: 38, 50, 60mm dia. |
| Shaft: |
Mortise type: 15, 20mm dia.
Female threaded type: 12, 15mm dia. |
| Bearing: | Precision bearing double face sealed |

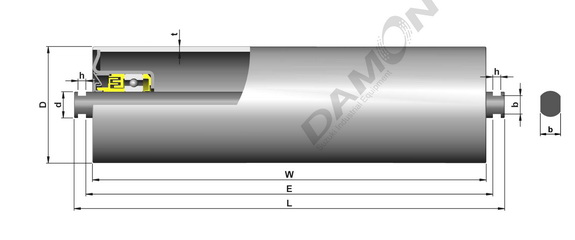

Flat Milling
| Tube diameter(D) | Axis diameter(d) | ||
| 60 | 15 | E=W+10 | L=W+28 |
| 76 | 20 | E=W+10 | L=W+28 |
| 89 | 20 | E=W+10 | L=W+28 |
| 108 | 25 | E=W+10 | L=W+34 |
| 133 | 25 | E=W+10 | L=W+34 |
| 159 | 25 | E=W+10 | L=W+34 |
| Tube | (D*t) | Shaft Dia. (d) | |||
| steel, paint or powder coating | 15(b/h=12/10) | 20(b/h=14/6) | 25(b/h=18/8) | 30(b/h=22/8) | |
| 38*1.2 | 1.200.JDA.ACB | ||||
| 60*2 | 1.700.JOA.ADB | ||||
| 76*3 | 1.700.JSA.AEB | ||||
| 89*3 | 1.700.JYA.AEB | ||||
| 89*4 | 1.700.JUA.AEB | ||||
| 108*3.5 | 1.700.J4A.AKB | ||||
| 133*3.5 | 1.700.J9A.AKB | ||||
| 159*4 | 1.700.JKA.ALB |
