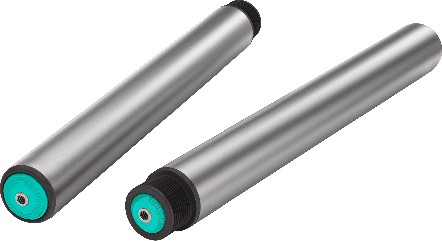

2250 Poly-Vee Roller

Conveyor Type:	Zero pressure accumulation conveyor curve. (Also can be used in other applications)
Applications:	Indoor Application Package goods, plastic tote containers, cardboard cartons etc.
Tube Type:	Mild steel coated tube: 50mm dia Stainless steel tube: 50mm dia. Aluminum tube: 50mm dia
Shaft:	Spring loaded type: 11mm hex, 12mm dia. Female threaded type: 12mm dia.
Bearing:	Plastic bearing housing Nylon 66. Beaing end cap seal: PP. Precision bearing 6002 double face sealed
"O" Ring Groove :	Suitable for 2,3 & 4 ribbed Vee belt Nylon 66

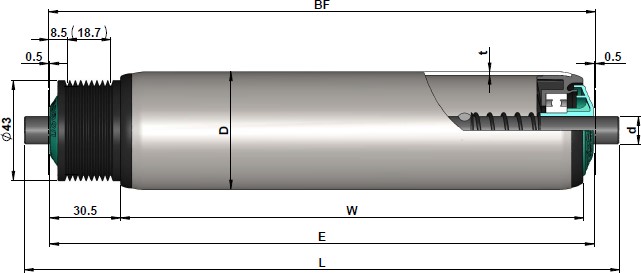

Spring Loaded

Tube diameter(D)	Shaft diameter(d)
50	12/11hex	E=W+35	L=W+57

Tube	Tube Diameter & Thickness (D*t)	Shaft Diameter (d)
Steel, Zinc Plated		12	11hex
	50.6*1.5	2.250.JHA.ACA	2.250.JHA.AFA
	50.6*1.5	2.250.JHD.ACA	2.250.JHD.AFA
Stainless steel	50.6*1.5	2.250.NHC.BCA	2.250.NHC.BFA
Aluminum alloy	50.6*1.5	2.250.AHC.ACA	2.250.AHC.AFA
	60*2	2.230.NOC.BCA	2.230.NOC.BFA

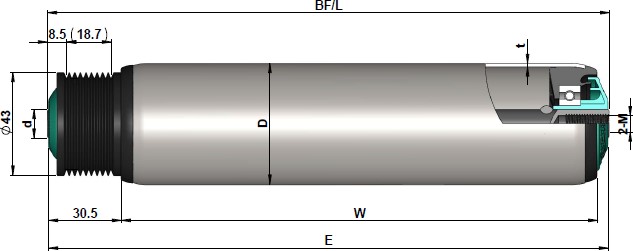

Female Thread

Tube diameter(D)	Shaft diameter(d)
50	12	E=W+37

Tube	Tube Diameter & Thickness (D*t)	Shaft Diameter (d)
		12
Steel, Zinc Plated	50.6*1.5	2.250.JHA.ACC
Steel, zinc plated, 2mm PVC cover	50.6*1.5	2.250.JHD.ACC
Stainless steel	50.6*1.5	2.250.NHC.BCC
Aluminum alloy	50.6*1.5	2.250.AHC.ACC
