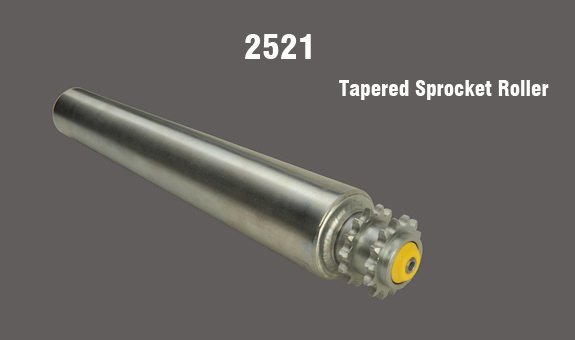

2521 Tapered Sprocket Roller
| Conveyor Type: | Single or double driven sprocket roller conveyor |
| Applications: |
Indoor Transportation
Package goods, plastic tote containers, cardboard cartons etc. |
| Tube Type: | Mild Steel coated tube: 2mm wall thickness |
| Shaft: | Female threaded type: 12mm dia. |
| Bearing: |
Plastic bearing housing Nylon 66.
Beaing end cap seal: PP. Precision bearing 6002 double face sealed |
| Sprocket: |
Steel sprocket type:
No. of teeth = 14 (08B chain) |

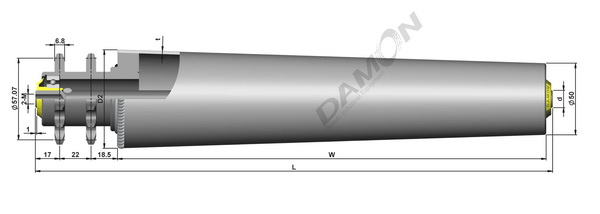

Female Thread
| Tube diameter(D) | Axis diameter(d) | Sprocket Model | d0 | |
| 50 | 12 | L=W+62.5 | 08B14T | 57.07 |
| Tube | Bearing | ||
| Steel, Zinc Plated | 12(M8x15) | 15(M10x20) | |
| 2.521.JW1.ACC | 2.521.JW1.ADC |
