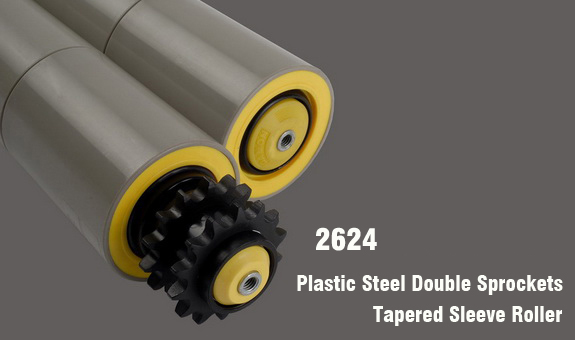

2624 Polymer Sprocket Tapered Roller
| Conveyor Type: | Single or double driven sprocket roller conveyor curve |
| Applications: |
Indoor Transportation
Package goods, plastic tote containers, cardboard cartons etc. |
| Tube Type: |
Welded steel inner tube 50mm dia.
Plastic tapered outer sleeve |
| Shaft: |
Spring loaded type: 11mm Hex, 12mm dia.
Female threaded type: 12mm dia. |
| Bearing: |
Plastic bearing housing Nylon 66.
Beaing end cap seal: PP. Precision bearing 6002 double face sealed |
| Sprocket: |
Plastic sprocket type:
2614 type No. of teeth = 14 (08B Chain) 2624 type No. of teeth = 14 (08A Chain) |

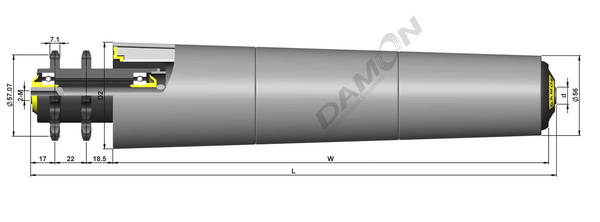

Female Thread
| Tube diameter(D) | Axis diameter(d) | ||
| 56 | 12/15 | E=W+9 | L=W+11 |
| Tube | Axis diameter(d) | |
| 12(M8x15) | ||
| Steel, Zinc Plated | 230~305 | 2.624.JH3.ACC |
| 330~405 | 2.624.JH4.ACC | |
| 430~505 | 2.624.JH5.ACC | |
| 530~605 | 2.624.JH6.ACC | |
| 630~705 | 2.624.JH7.ACC | |
| 730~805 | 2.624.JH8.ACC |
